PL Series

Promax PL112A Active Line Array Speaker

The Promax PL112A is a high-power Active Line Array system serial, lightweight two-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth. Compact 2-way system with 1x12"(380) Neodymium dual voice coil LF driver and 2x1.7" (38mm) exit neodymium compression driver mounted a rotatable 80°×50° constant directivity HF horn. It is the ideal choice for tour applications, Theater, disco bars...

138 dB Peak SPL
Dual 1x12" Dual Voice Coil low-frequency driver for low-distortion and higher SPL
Dual 2x1.75" diameter Promax neodymium compression driver
Multiple injections molded handles with backing cup for easy transport
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints
Cloth-backed, dent-resistant 14 gauge steel grilles
Rated power: 600w AES, 1200w Peak
Number of Input driver: 2xNL4FC speakon

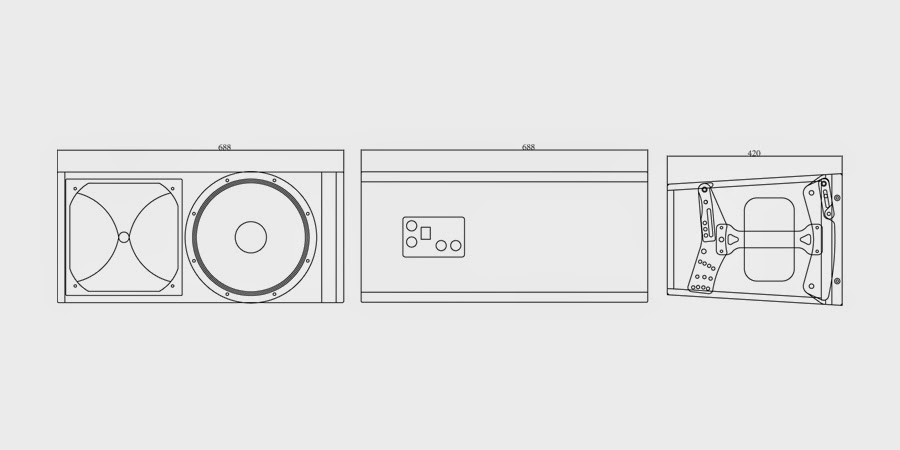

Dimensions:HxWxD: 380x688x420mm
Weight: 29 kg
Voltage operation: 220V/50-60HZ
